Climate Chamber

Stability testing in accordance with ICH and GMP

Facts & Figures

Cat.No.: ICH

10-80% rh

Smart humidification

-10 °C - +60 °C

Temperature range (ICH)

0 °C - +60 °C

Temperature range (ICHL)

3

Model sizes

TwinDISPLAY

Model variants

Double doors

Standard

Product description Advantages Areas of applications Accessories Contact

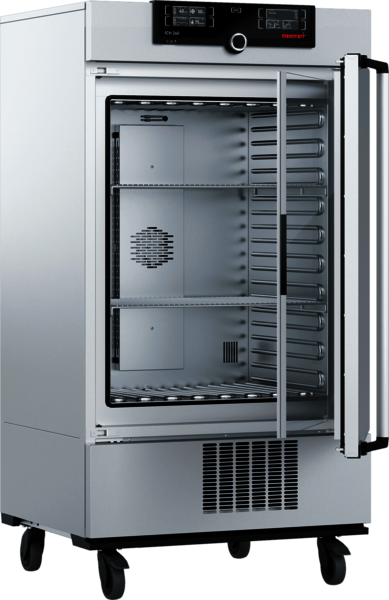

Climate chamber ICH for stability testing in accordance with ICH and GMP

Its excellent temperature and humidity homogeneity positions the climate chamber ICH in the international top league of stability test chambers. Thermal transfer to the interior – whether heat or cold – is guaranteed through a large-area air jacket on four sides. Thanks to its hermetically sealed interior, the climate chamber ICH does not consume any water once the setpoints have been reached, provided that the door is not opened. Two high-grade platinum temperature sensors with mutual monitoring guarantee interruption-free long-term operation even if one sensor should fail.

Model Sizes

Model	Details	Display
ICH110	Volume: 108 l, int. dim.: 560 x 480 x 400 mm	Twin
ICH110L (with light)	Volume: 108 l, int. dim.: 560 x 480 x 400 mm	Twin
ICH260	Volume: 256 l, int. dim.: 640 x 800 x 500 mm	Twin
ICH260L (with light)	Volume: 256 l, int. dim.: 640 x 800 x 500 mm	Twin
ICH750	Volume: 749 l, int. dim.: 1040 x 1200 x 600 mm	Twin
ICH750L (with light)	Volume: 749 l, int. dim.: 1040 x 1200 x 600 mm	Twin

Advantages

Climate-friendly

CO₂ Refrigerant (R134a) is climate-friendly

AtmoCONTROL

Temperature and humidity ramps programmable via AtmoCONTROL software
A wide range of options for programming and documentation using interfaces, integrated data logger and software AtmoCONTROL

Electronic control

Air exchange rates and air flap position electronically controllable

Areas of applications

Storage in a constant climate of plastics, metal parts, compound materials and electronic components for conditioning, ageing, corrosion tests
Test for photostability of plastics, metal parts, compound material
