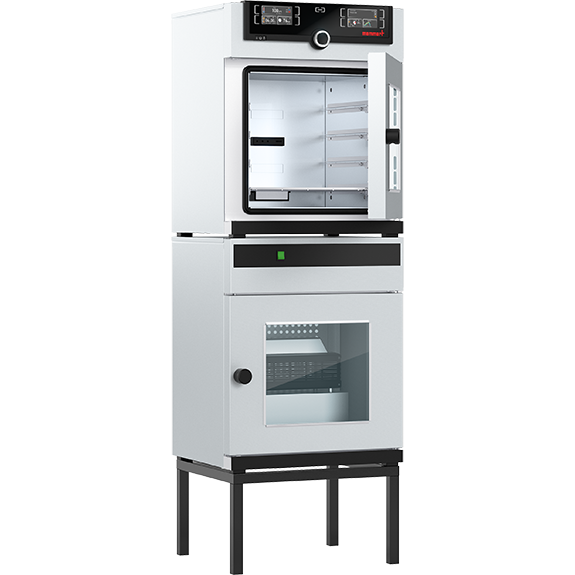

Vacuum Oven

Efficient Vacuum Drying

Facts & Figures

Cat.No.: VO

Up to +200 °C

Temperature range

5 to 1100 mbar

Vacuum control range

3

Model sizes

TwinDISPLAY

Model variants

29 to 101 litres

Interior volume

Optimized Rinsing, ON/OFF

Pump control

Gentle, powerful, energy-saving

Reliable, comfortable and energy-efficient - that’s how vacuum drying works today. Separately adjustable and directly heated thermoshelves ensure precise temperature control and, thanks to the digital pressure control, the chamber load is not only dried at high speed but also extremely gently in our powerful and robust vacuum drying oven. Together with the speed-controlled vacuum pump, the vacuum oven VO forms an unbeatably energy-efficient duo. The pump is perfectly tidied away in the matching base cabinet. Moreover, the vacuum cycles, which Memmert is the only manufacturer worldwide to offer, come into play perfectly when vacuum drying large quantities of poder or granulate.


Model Sizes
ModelDetailsDisplay
VO29Volume: 29 l, int. dim.: 385 x 305 x 250 mmTwin
VO49Volume: 49 l, int. dim.: 385 x 385 x 330 mmTwin
VO101Volume: 101 l, int. dim.: 545 x 465 x 400 mmTwin

Areas of applications

  • Tempering / burning-in of electronic and mechanical components
  • Degassing and evaporating volatile substances and solutions
  • Residue-free drying of components
  • Drying and heating of powder and granulate
  • Drying of cleaned (machine) parts
  • Oxygen-free storage of electronic parts
  • Simulation of atmospheric pressures (with cooling unit)
  • Determination of dry content / humidity content acc. to the oven drying method
  • Drying and heating of pastes, powder, pellets, plant extracts, wax, or granulate for formulation and production
  • Drying of cleaned machine components
  • Process simulation vacuum drying
  • Degassing of solutions
  • Determination of dry content / humidity content acc. to the oven drying method
  • Drying and heating of pastes, powder, pellets, plant extracts, wax, or granulate for formulation and production
  • Drying and storage of starter cultures and bacteria
  • Simulation of storage and transport conditions during intercontinental flights
  • Drying and conservation of bacterial strains below room temperature

The right accessories and options for this product

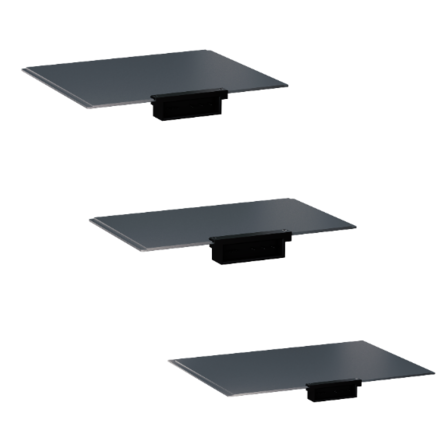

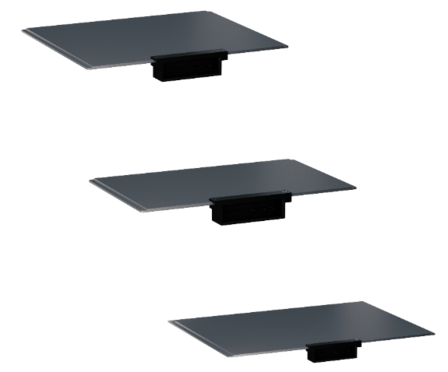

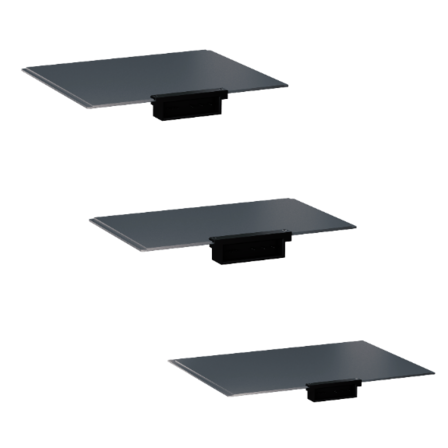

Additional thermoshelves | Aluminium

Additional thermoshelves – aluminium eloxadised material W.-St. 3.3547 (ASTM B209) with integrated large-area heating including local temperature sensing (Pt100, 4-wire-circuit), individual overtemp. protection for each shelf MLOP (Multi-Level-Overtemperature-Control) and calibration certificate



Model size2949101
Cat. No.B00741B00743B00744

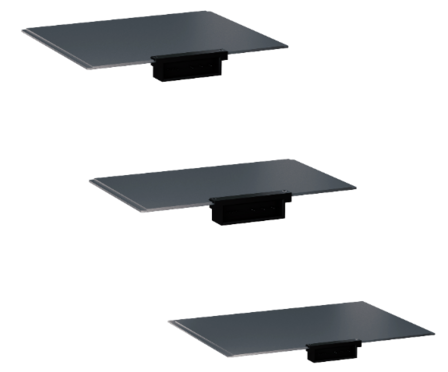

Additional thermoshelves | Stainless steel

Additional thermoshelves – stainless steel material 1.4404 (ASTM 316 L) for especially corrosive material with integrated large-area heating including local temperature sensing (Pt100, 4-wire-circuit), individual overtemp. protection for each shelf MLOP (Multi-Level-Overtemperature-Control) and calibration certificate



Model size2949101
Cat. No.B00733B00734B00735
More accessories

We have the right accessories for you!

We offer a wide range of accessories for your desired Memmert device.

Contact us, and we will be happy to assist you in selecting the right accessories.

Contact us now

Downloads

How can we help you?

Please tell us your request to find your personal contact.

Additional Products

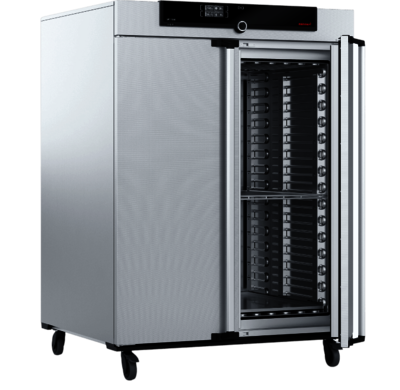

Memmert | Universal ovens

The all-round genius of heating

Memmert | Universal ovens

Universal Oven UM as a Medical Device

Memmert | Pass-Through Ovens

Cleanroom Integration Solution

Memmert | Cleanroom Drying Ovens

Tailored solutions

Memmert | Paraffin Ovens

Precise Paraffin Control

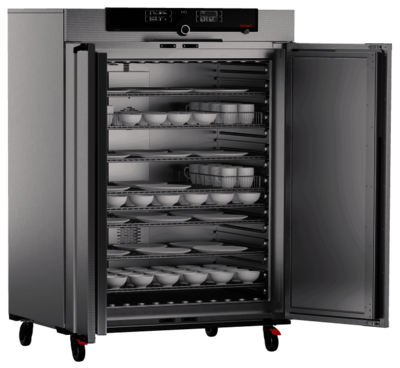

Memmert | Dishwasher
