Blood Bank Refrigerators

Safe storage of whole blood and blood components

Facts & Figures

Cat.No.: B

+2 °C to +6 °C

Temperature Control

9 sizes

Model

31 - 750 Blood Bags

Capacity

52 - 895 l

Gross Volume

SN | SN/T

Climate Class

Product description Advantages Accessories Contact

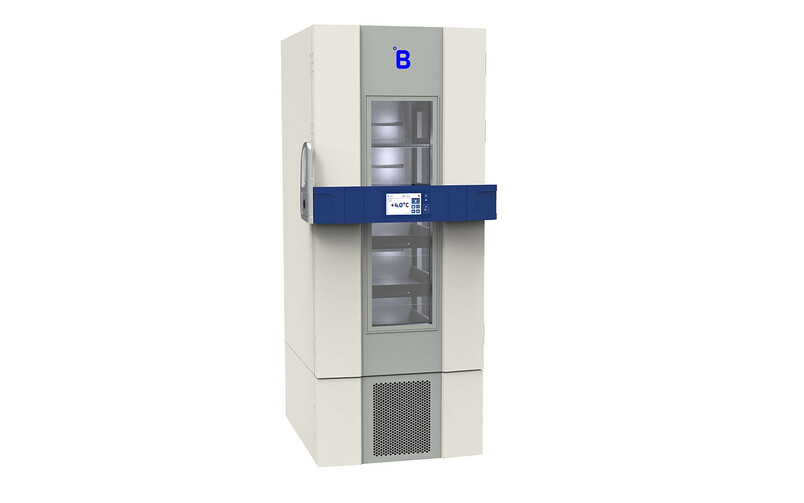

Blood Bank Refrigerator

B Medical Systems' Blood Bank Refrigerators are devices intended for the safe storage of whole blood and blood components (e.g. blood cells or plasma) at temperatures ranging from +2 °C to +6 °C.

Specially designed for blood transfusion services, blood processing centers, blood banks, and hospitals, the Blood Bank Refrigerators meet the highest regulatory requirements. On top of being compliant with the DIN 58371 and Önorm K 2030, they are also classified as medical devices Class II(a) (EU), Class II (FDA) and are AABB standards-compliant.

All models deliver high performance in terms of temperature control, energy consumption, noise level, and monitoring solution.

Model	Gross volume	Net volume
B51	52 l	45 l
B131	121 l	106 l
B291	297 l	269 l
B381	362 l	329 l
BF261	121 l	106 l
B401	451 l	384 l
B501	598 l	510 l
B701	747 l	636 l
B901	895 l	763 l

Advantages

High storage capacity

High storage per square meter in terms of net volume, with a very versatile inner volume utility due to multiple user friendly rails allowing modularity.

Integrated multi-function monitoring electronics

Integrated B Medical Systems multi-function electronics with easy access in the door level; offers alarms, central alarm system, set point security, battery backup, full display and many other control features; compatible with °B Connected monitored solution for data monitoring and recording.

Exclusive integrated electronics handle bar

All functionalities are easily accessible:

Digital control with full functionalities - Standard multifunction digital sensitive 4,3’’ panel integrated at optimal level in the door handle with full commands and connections, or optional full 7’’ touchscreen with pre-installed connection allowing exclusive °B Connected monitoring functionalities
Open / close - Heavy duty door lock mechanism

Highest insulation value (organic glass door)

4-layer (Precision Line) and 5-layer (Premium Line) PMMA organic glass offering highest insulation, combined with reduced weight reducing efforts to close door and constraints on hinges, offering better longevity.
