TwinCool ULT Freezer

Haier Biomedical

Facts & Figures

578 - 828

Internal volume

42 dB(A)

Sound level

-40 °C / -86 °C

Temperature range

Product description Areas of applications Contact

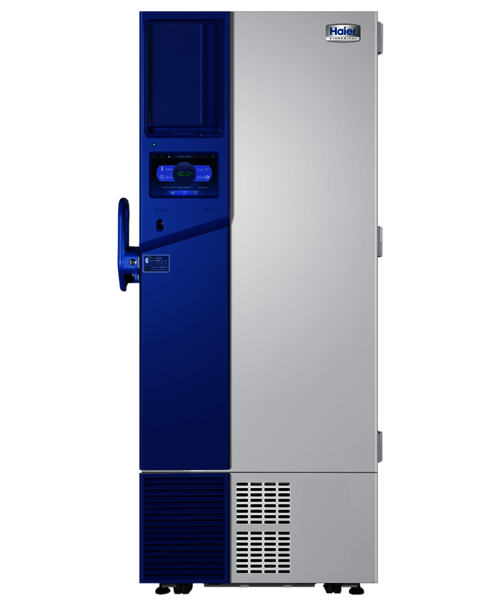

Haier Biomedical TwinCool ULT

Haier Biomedical offers a wide range of ULT freezers. One of the series is the ‘TwinCool Frequency Conversion ULT’, available in 3 volumes.

The TwinCool ULT freezers combine frequenecy conversion compressors, hydrocarbon refrigerants and dual refrigeration system technology to deliver optimal sample security, energy-efficient and sustainability.

Due to the double independent hydrocarbon refrigeration system, each system can maintain 80 °C ensuring the safety of your samples.

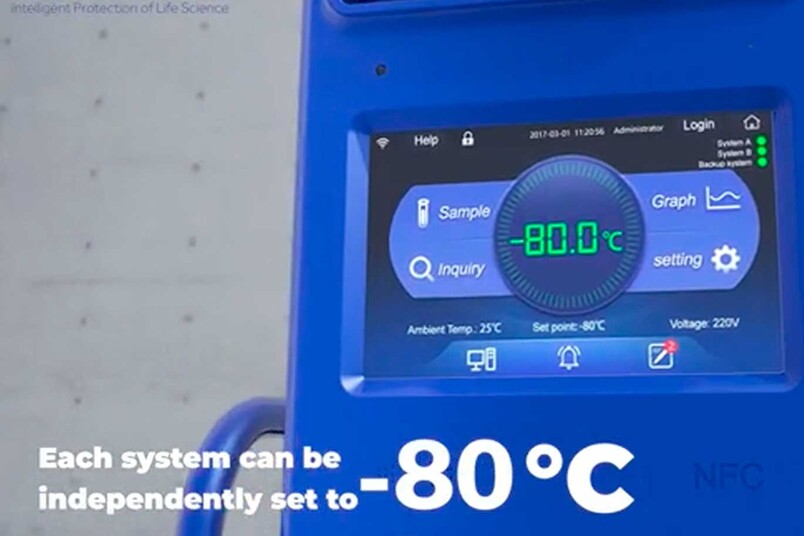

Max. loading capacity is 600 boxes and 60.000 stamples (2 inch boxes with 10 x 10 config). Available with a 10.1 inch touch screen, sensitive touch operation.

Optional IoT system available for monitoring the operation status of the freezer in real time and equipped with multiple alarm functions. Also optional available is an adjustable sample loading tray.

	DW-86L578BPST	DW-86L728BPST	DW-86L828BPST
Capacity	578 litres	728 litres	828 litres
Interior dimensions W x D x H (mm)	620 x 716 x 1310	766 x 716 x 1310	870 x 716 x 1310
Exterior dimensions W x D x H (mm)	895 x 998 x 1980	1046 x 998 x 1980	1145 x 998 x 1980
Net weight	325 kg	350 kg	380 kg
Castors	4	4	4
Levelling feet	2	2	2
Inner doors	4	4	4
Shelves¹	3	3	3
Shelf dimensions W x D (mm)	606 x 650	752 x 650	856 x 650
Max. load per shelf (kg)	72	90	108
Energy cons.	5.5 kWh/24h	7.7 kWh/24h	7.9 kWh/24h
