Shaking Incubators

HYP-380Q & 260Q (Pro)

Facts & Figures

± 3 °C

Temp. uniformity

PT-100

Temp. sensor

Yes

Cooling

Product description Advantages Areas of applications Contact

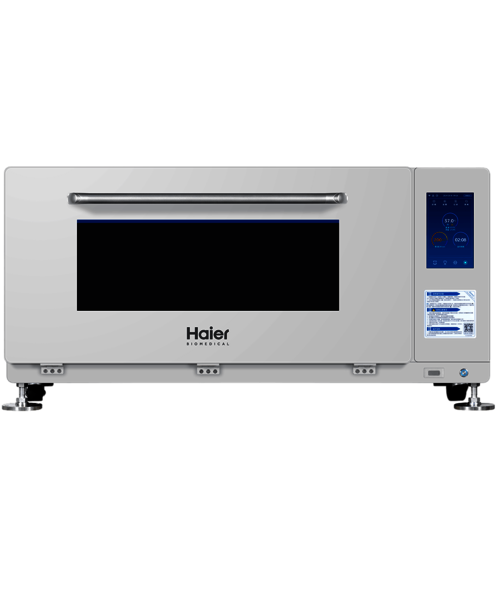

Haier Shaking incubators

The Haier HYP-260Q Pro and 380Q Pro shaking incubators have been developed for microbiological and biotechnological applications where temperature stability, oxygen supply and reproducibility are of crucial importance. By combining temperature control with a controlled orbital shaking motion, these systems provide optimal conditions for the cultivation of bacteria, yeasts, cell cultures and other micro-organisms.

Why choose a Haier incubator with a shaking function?
A Haier incubator with a shaking function combines precise temperature control with a stable and reliable shaking motion. This ensures a controlled environment for the cultivation of bacteria, yeasts and other micro-organisms. Thanks to high temperature uniformity, a powerful drive and intelligent control, conditions remain consistent throughout the experiment, which enhances the reproducibility of the results. Furthermore, the systems feature a user-friendly touchscreen, comprehensive logging of temperature and shaking data, and the ability to stack multiple units on top of one another for efficient use of laboratory space.

The features of the shaking incubators:

Temperature uniformity of up to ± 0.3 °C at 37 °C for consistent and reproducible culture results
Stable shaking mechanism for reliable and reproducible culture conditions
Intuitive operation via a 10-inch touchscreen
Automatic recording of temperature, alarm and shaking data supports the documentation and traceability of experiments
Stackable up to 3 units for optimal use of laboratory space (max. height 154.9 cm)
Automatic restart following a power cut to help prevent the loss of experiments
The maximum temperature is 65 °C and the minimum temperature is 4 °C (RT-20)
Orbital shaking motion
Outer chamber material: cold-rolled steel with a powder coating
Incubation chamber material: stainless steel
Heated door glass and frame
PT100 temperature sensor

Options include:

LED-module (0-20.000 lux, 6500 K wit)
Light-blocking cover
RS485
4 - 20 mA
Remote alarm

	HYP-380Q Pro	HYP-260Q Pro
Heating power¹	1000 W	500 W
Cooling power¹	231 W	231 W
Intern. dimensions B x D x H (mm)	1095 x 695 x 495	725 x 675 x 495
Digital settings	0.1 °C	0.1 °C
Platform size (mm)	900 x 560	600 x 560
Max. load capacity (kg)	35	20
Largest flas size & max. capacity	5 L x 8	5 L x 4

¹= Electrical

Advantages

Space-saving

Units can be stacked two to three high for space savings.

Shaking movement

Standard obital 26 mm. Optional 50 mm orbital.

Touch interface

Intuitive operation by a LED 10 inch touchscreen

Ergonomic handling

With a fold down door and rocker platform with one-touch pull-out locking

Erlenmeyer flask sizes

Door de grote ruimte tussen het platform en de onderzijde van het plafond van de schudincubator, passen zelfs de grote maat Erlenmeyers in deze schudincubator.
